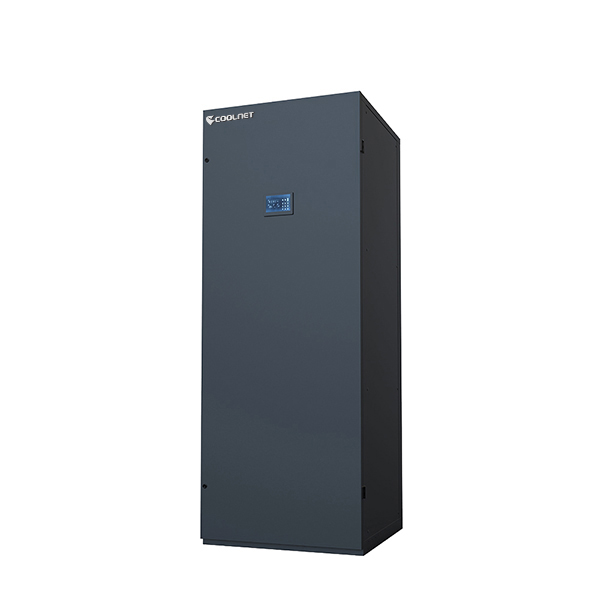

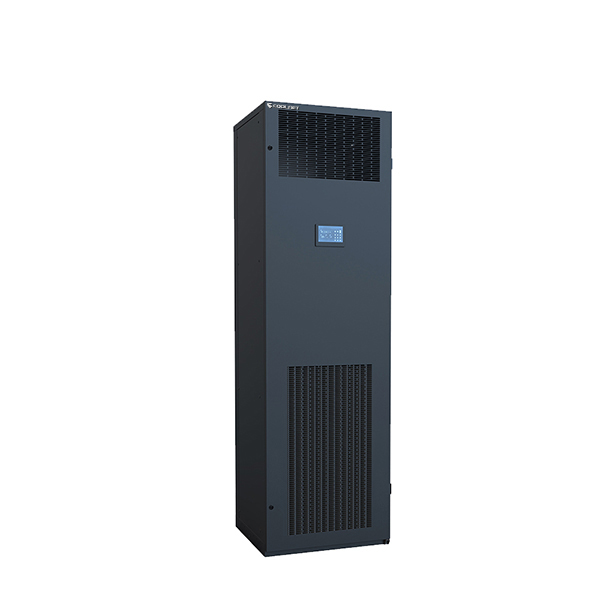

Cool-Smart Series Precision Air Conditioning 6-20kw

Cool-Smart Series Precision Air Conditioning 6-20kw

The cool-smart series computer room air conditioner is designed for small and medium-sized computer rooms, telecom station, equipment rooms, etc.. Cool-smart has the characteristics of high air volume and small enthalpy with high reliability, high efficiency, long working life, and energy saving.

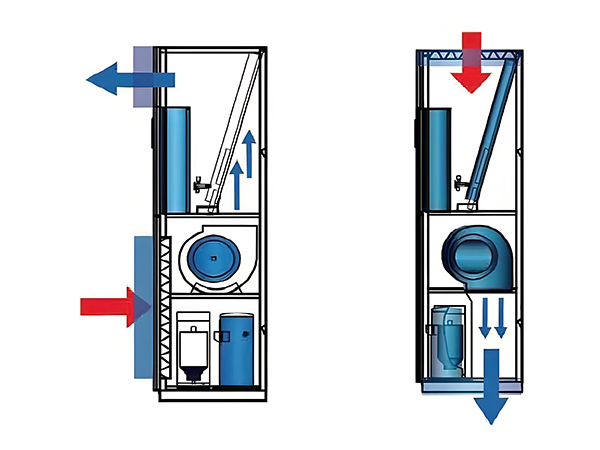

  • Air Flow :

    Front/Down
  • Power Supply :

    220Vac/1Ph/50Hz 380Vac/3Ph/50Hz
  • Compressor Refrigerant :

    R410A
  • Compressor :

    Fixed Frequency Scroll Compressor
  • Fan Section :

    Backward Inclined Centrifugal (Ec)Fan
  • Humidifier Section :

    Electrode Type

Full range of precision air conditioning products
Covering a wide range of small, medium and large sizes, inter-row, chilled water, etc.
ADVANTAGE

HIGH EFFICIENCY



Large air volume and small enthalpy design, low energy consumption;

High efficiency scroll compressor with high energy efficiency, high cooling capacity, low noise and long working life;

Large-area multi-layer evaporator, designed with high efficiency internal thread copper tube and self-cleaning heat exchange fin, which ensures the highest heat exchange efficiency to guarantee large cooling capacity;

Large outdoor condenser cooling circuit design and outdoor speed control fan and condensing pressure automatic adjustment device.

HIGH RELIABILITY



365 days, 24 hours continuous operation design;

Advanced self-diagnosis and fault warning control system;

Unique self-balancing software to improve the trouble-free running time and prolong the actual service life of key components of system;

PTC new generation heating system, anti-dry safety design, fast and accurate heating, safe and reliable;

Multi—system protection measures such as high and low pressure of compressor, Exhaust over temperature, small air volume, motor overload and so on.

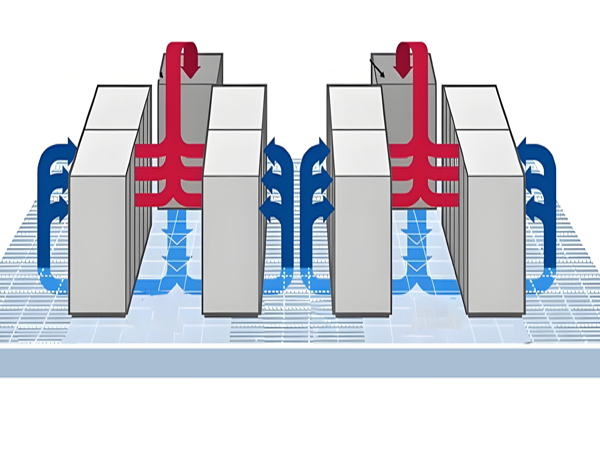

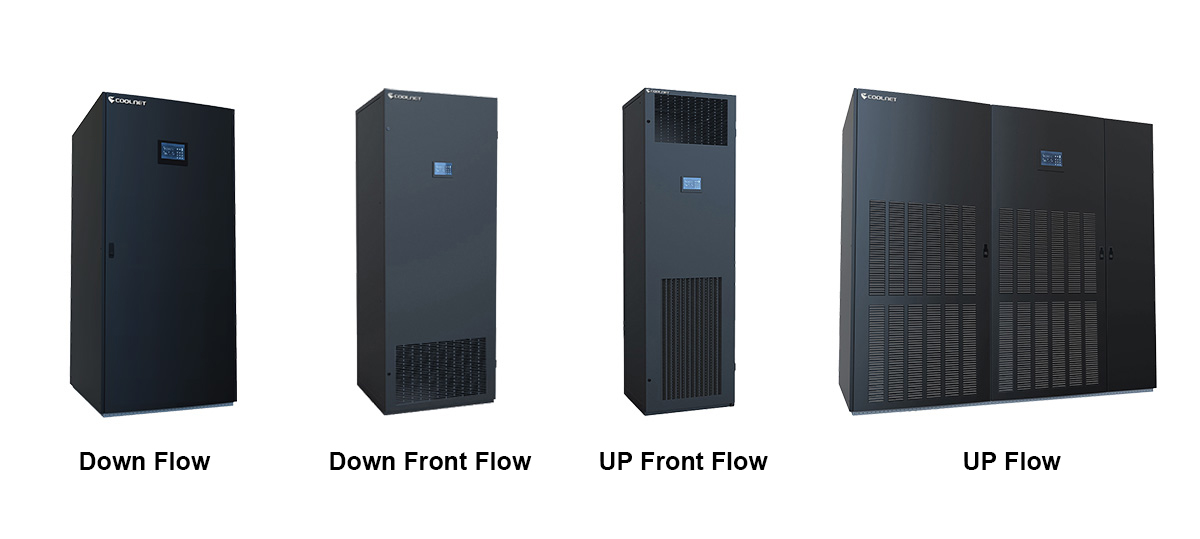

ALL TYPES OF AIR CONDUCTION SYSTEMS



Suitable for different environments and needs. Selection of a suitable air-conditioning system requires consideration of factors such as the structure of the building, usage requirements, energy consumption and maintenance costs.



KEY COMPONENTS

  • #

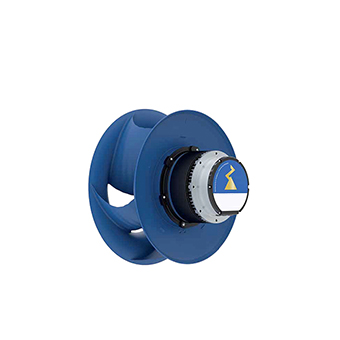

    EC Fans
    The backward centrifugal EC fan with high efficiency and reliability is adopted, featuring large air volume, stable operation, long air supply distance, and wide static pressure range adjustment.
  • #

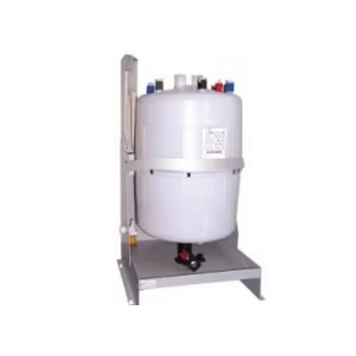

    Humidifier
    An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer,
  • #
    Electronic Expansion Valve
    Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant

  • #
    Heating
    PTC electric heater with high conduction efficiency, equipped with an overheat protection device, is efficient, reliable, and safe
