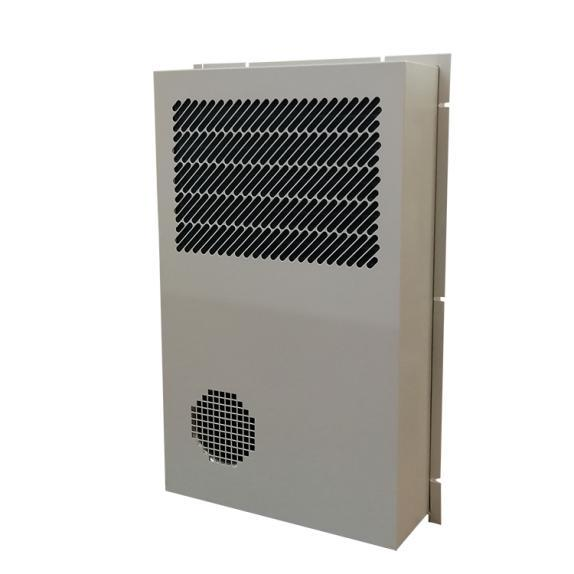

Cabinet air conditioning is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
Model :
CN-OAC0300Cooling capacity(L35/L35) :
300WVoltage :
220VAC/110VAC±15% 50/60HzRated Power(L35/L35) :
169WRated Current (220VAC) :
0.77ARated Current (110VAC) :
0.84ACircuit max pressure :
26barRefrigerant :
R134a*250gHeating Power(Optional) :
500WWorking temperature :
-5~55℃ -40~55℃(with heater)Noise :
56dBWeight :
18KgIP Grade :
IP55Dimension(W×D×H) :
353×165×583mm
Reliable Climate Control

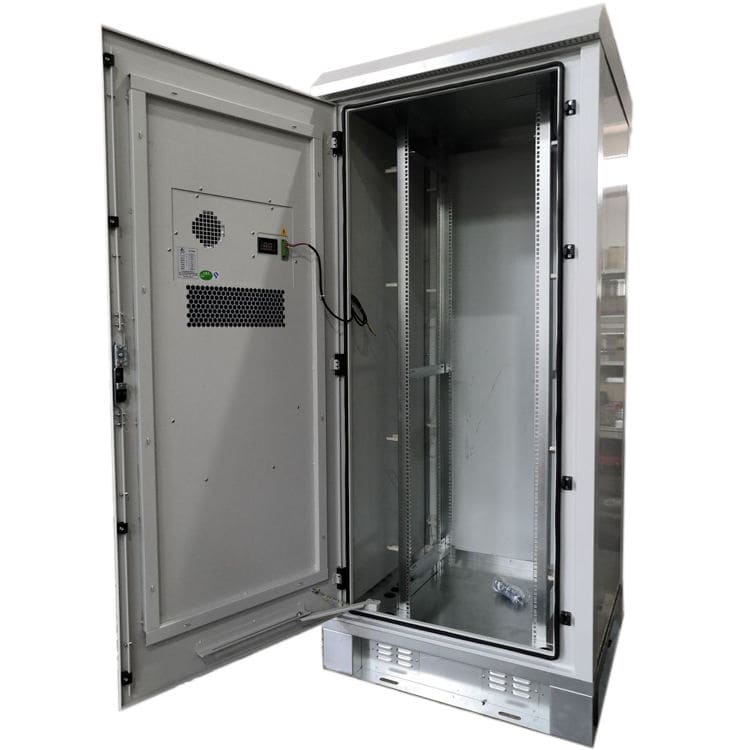

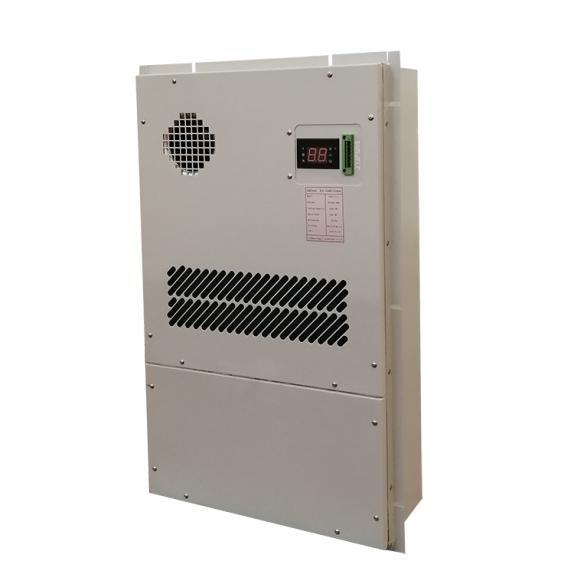

This air conditioning unit features a fully independent closed-loop air circulation system to effectively prevent dust, oil mist, and moisture from entering the electrical cabinet. It ensures precise temperature and humidity control, maintaining internal humidity around RH40% to protect electrical components from failure. The user-friendly controller allows flexible temperature adjustments, while built-in multi-level protection functions and passive alarm terminals enable fault signal transmission to CNC systems. Models with heating capabilities use advanced PTC heating elements that activate automatically in low temperatures, offering efficient self-regulating performance. Multiple installation options—including wall-mounted, embedded, top-mounted, and door-mounted—are available to suit diverse application needs.

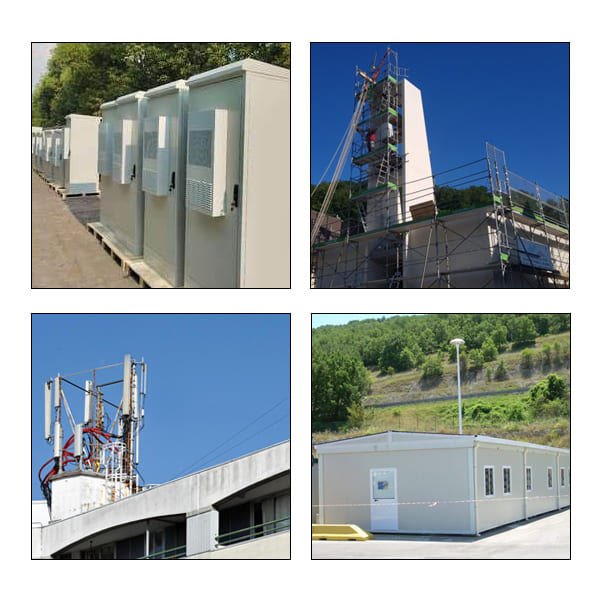

Application
Telecommunications:Enclosure air conditioners are used to regulate the temperature of servers, switches, and other telecommunications equipment housed in cabinets.
Industrial Automation:
Enclosure air conditioners can be used to regulate the temperature of PLCs, variable frequency drives, and other control panels in industrial automation applications.
Medical:
Enclosure air conditioners are used to regulate the temperature of medical equipment, such as diagnostic and monitoring devices, housed in cabinets.
Military and Defense:
Enclosure air conditioners are used to regulate the temperature of sensitive electronics and communications equipment housed in military vehicles, control rooms, and command centers.
